SOLD
Details

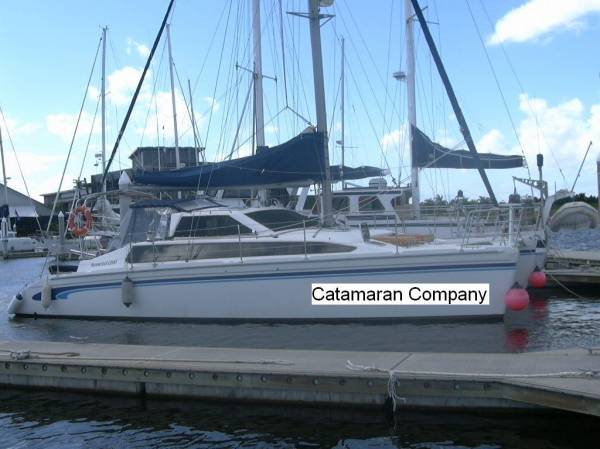

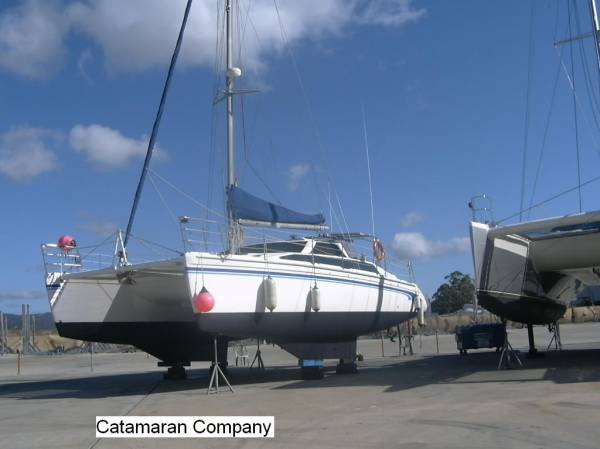

Seawind 1200 sailing catamaran, built to Survey and was in 1E, 2D & 4E survey initially but very lightly used. Has been a private boat since 2002, cruising the East Coast. Three Cabin Owners Version with 3x Queen berths.
All structural laminates and reinforcements designed to Australian Survey Standards.
ISO/NPG gelcoat for maximum durability.
Outer hull laminates in Vinyl Ester Resin to prevent osmosis.
Sandwich core construction throughout boat. Cored with balsa (hulls) and PVC foam (deck) for maximum strength to weight. Fibreglass laminates of non-woven uni, bi and tri-directional fabrics to engineered specifications.
Fully glassed hull and deck join forming total monococque construction.
Collision bulkheads in each hull. Watertight chambers throughout hulls.
Timber cored in deck in place of PVC where deck fittings are located. All deck fittings through bolted with backing plates or washers as required.
Stainless steel grab rails along coach roof.
Aluminium rubbing strakes with fibreglass end caps.
Powder coated aluminium bi-fold access door from aft deck to saloon.
All structural laminates and reinforcements designed to Australian Survey Standards.
ISO/NPG gelcoat for maximum durability.
Outer hull laminates in Vinyl Ester Resin to prevent osmosis.
Sandwich core construction throughout boat. Cored with balsa (hulls) and PVC foam (deck) for maximum strength to weight. Fibreglass laminates of non-woven uni, bi and tri-directional fabrics to engineered specifications.
Fully glassed hull and deck join forming total monococque construction.
Collision bulkheads in each hull. Watertight chambers throughout hulls.
Timber cored in deck in place of PVC where deck fittings are located. All deck fittings through bolted with backing plates or washers as required.
Stainless steel grab rails along coach roof.
Aluminium rubbing strakes with fibreglass end caps.
Powder coated aluminium bi-fold access door from aft deck to saloon.
Region
Queensland
Location
Gold Coast Queensland
Reference
C0284
Year
1998
Designer
Tony Grainger
Builder
Seawind Catamarans NSW
Length
39' 4" - 12.00m
Beam
6.5mts
Draft
1.2mts
Displacement
8 tons
Keel / Ballast
Mini Keels
Hull Material
Composite/fibreglass
Deck Material
Composite/fibreglass
Engine
2x 30hp Volvo saildrive engines. Engine numbers are 5102107820 and 5102107831. Approx 1700 hours, Engine hour meter. Volvo brand three bladed folding propellers, Fuel decontaminators, one on each motor, Fresh water cooling, rubber isolation mounts on re-inforced fibreglass bed with integral oil drip pan. Twin primary Racor water separator / fuel filters (Elements are Racor R24S or R24T’s), Secondary engine fuel filters (Elements are Volvo 3581621 or Ryco Z127 or Donaldson P550057), Jacketed fuel lines. Engine, fuel tank and fuel line installation to Australian Standards to meet offshore survey. Water intakes for engines protected by bronze strainer (1 of each). Twin set console -mounted engine instruments with electric tachometers, engine monitoring and warning systems. Twin single lever engine controls side mounted by helm. Steering wheel with mechanical steering, Steering console with instruments and twin engine controls. Engine room: Catalogues of the electronics, motors and boat
Engine Hours
1700 hrs
Number Engines
2
Fuel
2x 180lts survey pressure tested aluminium tanks
Water
750Its (180gals) fresh water in two integral water tanks (one each hull)
Galley
Galley fresh pressurised water supplied by Flickmaster lever tap. Storage Hot Water System: 30 litre storage heater with plumbing to both bathrooms and galley. Heater works off both AC shore power & engine heat exchanger, Spacious galley with co-ordinated Laminex counter surfaces, timber accents. Two burner Broadwater LPG stove with oven. Survey approved with flame failure device. Double stainless steel sink with draining board. Under bench storage with polished timber door fronts & cutlery drawers. Inboard side of galley: Over-bench cupboards with sliding door fronts. Sanyo Microwave, dinner set, glasses, cutlery, saucepans, cooking utensils
Refrigeration
60 litre freezer, top loading, heavily insulated. 12-240 volt freezer unit. Indel domestic front loading 12volt bar type upright 130lt refrigerator, Foam insulated with hinged lid cockpit icebox.
Accommodation
3 Cabin Owners Version with 3x Queen berths 2mts x 1.4mts. Main Saloon with storage under settee, Floors in polished ash with jarrah inlay, bedroom cabins are in cherry timber and vinyl wall finishes, good headroom throughout. Polished timber sole in the galley. Removable windows to saloon
Shower
Two inside and 1 on the transom - All showers are Hot/Cold
Toilet
2x electric toilets. Each toilet fitted with Lectra-san waste treatment unit.
Dinghy
Walker Bay sailing dinghy with mast and sails
Outboard
5hp Yamaha
Covers
Mainsail cover, Aft cockpit awning over stainless steel frame with extension to aft Targa + Clears
Ground Tackle
Muir VR1250 CUB with 1000 watt motor electric anchor winch with chain & gypsy (located under locker to give a clean deck). Primary anchor is 60Ib Manson with 70mts x 10mm short link galvanised chain. Anchor is stored in a specially designed anchor roller under the forward beam.
• Anchor winch has foot switch at the winch plus a remote up/down controls at the helm station.
• Second anchor: backup anchor system is provided. Consists of 451b Manson type anchor with 10mts short link chain plus 50mts x 16mm nylon anchor rope, 4x Fenders, mooring lines
• Anchor winch has foot switch at the winch plus a remote up/down controls at the helm station.
• Second anchor: backup anchor system is provided. Consists of 451b Manson type anchor with 10mts short link chain plus 50mts x 16mm nylon anchor rope, 4x Fenders, mooring lines
Safety Gear
2x submersible electric bilge pumps with high level alarms and controls with integral master battery switch panel. Magnetic reed float switches, 3x manual bilge pumps (two mounted in cockpit near helm). Mechanical belt driven pump on port motor serving rigid plumbed inlets. Electric Clutch,
Survey approved bronze, thru-bolted marine seacocks on all thru-hulls below waterline.
• Fire Extinguishers: 2x 4.5 ABE powder + 2x small fire extinguishers • EPIRB : 1x 406 MHz MT 403 G GPS Serial# 30144, Registered with Emergency Response Unit, Australian Maritime Safety Authority. • Lifebuoys : 2x circular lifebuoys.
• Carly Floats : 2x 10 man rigid liferafts-floats. (suitable for E survey) • Lifejackets : 12x Coastal
(survey approved) • Other safety equipment : flares, V-sheet, Survey Safety book
Survey approved bronze, thru-bolted marine seacocks on all thru-hulls below waterline.
• Fire Extinguishers: 2x 4.5 ABE powder + 2x small fire extinguishers • EPIRB : 1x 406 MHz MT 403 G GPS Serial# 30144, Registered with Emergency Response Unit, Australian Maritime Safety Authority. • Lifebuoys : 2x circular lifebuoys.
• Carly Floats : 2x 10 man rigid liferafts-floats. (suitable for E survey) • Lifejackets : 12x Coastal
(survey approved) • Other safety equipment : flares, V-sheet, Survey Safety book
Electrics
4x 6vlt 220 a/h heavy duty, deep cycle (Type 810)house batteries, (Total 880 Amp hours) 1x 12vlt engine battery. AC System with Shore power : AC system includes circuit breakers with LED indicator lights, AC voltage monitoring gauge, shore power master switch with reverse polarity protection, battery charger and control, water heater control. Plus 15 mts shore power cord, outlets convenient throughout, Inverter/Battery Management: Management of both AC & DC power is achieved though a Heart Interface System. This is comprised of a Freedom Heart Inverter/charger with a Link 1000 Heart Interface battery monitor.
2x BP Solar BP275F (75 watt) solar panels with regulators. Deluxe illuminated master AC / DC electrical panel. DC system includes circuit breakers with LED indicator lights, DC voltage and amperage monitoring gauges, battery test system.
Marine grade tinned electrical wiring with extensive use of heat sealed connectors.
Numerous 12vlt interior lamps and courtesy lights throughout. Survey approved navigation lights, (Port & starboard mounted on bow rails) Deck floodlight mounted on spreaders. Masthead anchor & riding light. Sony XR-C7200 AM/FM Radio/CD stereo system with 10 stacker CD, TEAC MV-1416P 14" TV with VCR fitted into entertainment area. 14" TV with VCR fitted into Port bedroom
2x BP Solar BP275F (75 watt) solar panels with regulators. Deluxe illuminated master AC / DC electrical panel. DC system includes circuit breakers with LED indicator lights, DC voltage and amperage monitoring gauges, battery test system.
Marine grade tinned electrical wiring with extensive use of heat sealed connectors.
Numerous 12vlt interior lamps and courtesy lights throughout. Survey approved navigation lights, (Port & starboard mounted on bow rails) Deck floodlight mounted on spreaders. Masthead anchor & riding light. Sony XR-C7200 AM/FM Radio/CD stereo system with 10 stacker CD, TEAC MV-1416P 14" TV with VCR fitted into entertainment area. 14" TV with VCR fitted into Port bedroom
Electronics
Plastimo Olympic 100 Binnacle style steering compass mounted, Raytheon Pathfinder RL70 combination Chartplotter/GPS and Radar (Radar dome fitted), C MAP ELECTRONIC CHART: Covers Victorian and NSW coast from Melbourne to Southport. (AUB028), GME GX558A VHF radio with mast head aerial. Navigation Laptop Computer with C-MAPS for whole world, 27 MHZ Radio + Antenna, Autohelm ST50 Tridata - combination log, speed and depth instrument fitted at steering station. Autohelm ST50 Wind instrument fitted at steering station, Autohelm ST6000 Autopilot
Sail Inventory
Fully battened, radial cut, Mylar/Dacron racing mainsail by lan Short Sails. Triple stitched re-inforced construction. Triple reefing points - slab reefing with lazy jacks. Ronstan Mainsail battens cars. Aluminium batten car track on mast. Triple purchase mainsail halyard led back to cockpit winches through Spinlock Jammer. Mainsail controls: Traveller track with roller ball car and end blocks to give 4:1 purchase on the traveller. Mainsheet blocks on boom & traveler to give 4:1 purchase to the central mainsheet winch.
JIB Headsail: radial cut, Mylar/Dacron race sail by lan Short Sails, with UV stable Leech panel.
130% GENOA Headsail, radial cut, Mylar/Dacron cruising sail with UV stable Leech panel.
JIB Headsail: radial cut, Mylar/Dacron race sail by lan Short Sails, with UV stable Leech panel.
130% GENOA Headsail, radial cut, Mylar/Dacron cruising sail with UV stable Leech panel.
Mast / Rigging
Anodised mast & boom, Profurl Headsail Furling System, Headsail gear: Including tracks, blocks and sheets. Headsail halyards lead back to cockpit winches. Jib/Genoa controls: Sheet winches - 2x Harken 53ST, 2 speed (upgraded from standard ST44), Spinnaker controls including 2x additional deck winches. (No spinnaker included), 1.9mts fixed bow sprit with spinnaker take-off.
Deck Gear
2x winch handles in fixed winch pockets, Electro-polished stainless steel bow and stem rails and staunchions (750mm high with triple lifelines) Access gates at sides. Stainless steel Targa Bar fitted over aft beam. Targa bar incorporates davits for dinghy, White powder-coated forebeam with pelican striker and cable. Forebeam attached to solid forward walkway with anchor bow rollers installed. 8x Gebo anodised deck hatches, Each forward cabin has an additional opening port.
4x stainless steel mooring cleats (each side: bow & stern), Heavy-duty stainless steel mooring cleat on forward walkway. A fibreglass walkway/ swim platform built between the hull transoms, Stainless steel folding ladder on starboard transom steps.
Stainless steel LPG BBQ over aft swim platform, Folding deck Table and 2x folding chairs, 10x Rain coats, ladders to aft lockers, LPG storage bin on deck in front of mast with 9kg LPG tank (has direct overhead drainage). Open weave heavy duty trampoline nets on foredeck.
4x stainless steel mooring cleats (each side: bow & stern), Heavy-duty stainless steel mooring cleat on forward walkway. A fibreglass walkway/ swim platform built between the hull transoms, Stainless steel folding ladder on starboard transom steps.
Stainless steel LPG BBQ over aft swim platform, Folding deck Table and 2x folding chairs, 10x Rain coats, ladders to aft lockers, LPG storage bin on deck in front of mast with 9kg LPG tank (has direct overhead drainage). Open weave heavy duty trampoline nets on foredeck.
Remarks
As you can see this vessel is "Packed to the Rafters" with gear and represents fantastic value.
Contact us on 07 55291525 to arange an inspection.
